Horizontal 32T 60m3 Propane Storage Tanks

Share to:
    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Incoterm: FOB,CFR,CIF,FCA,CPT,CIP
    Min. Order: 1 Bag/Bags
    Delivery Time: 30 Days

Basic Info

Model No.: 60m3

Diameter: 2700mm

Overall Dimensions: 10962×2728×3318

Design Pressure: 17.7 Bar

Design Temperature: -20~50℃

Loading Capacity: 32000 Kg

Additional Info

Packaging: no

Productivity: 50 sets per month

Brand: Xagong Chusheng

Transportation: Ocean,Land

Place of Origin: Suizhou,Hubei ,China

Supply Ability: 600 sets per year

Certificate: ISO9001,ISO14001,ASME,GB

Product Description

We supply kinds of pressure vessles like 60m3 Propane Storage Tanks, LPG Tank Trucks, the products are widely used in the LPG industry, All 60m3 Propane Storage Tanks are fitted with pressure relief valve, thermometer, level meter, and other accessories to keep safe, 60m3 Propane Storage Tanks are shipped vacuum pre-purged to enable simplified first fill of the vessel.
Features:
1. 2" bottom liquid
2. Lockable valve cover
3. Bottom pipe supports
4. Compact design
5. Easy to install
6. Side mounted easy fill and valves
Parameter Data
Filling Medium: LPG(Propane)
Volume: 60,000 litres
Media Density: 540 kg/m3
Design Pressure: 17.7 Bar
Working Pressure: 16.1 Bar
Designing Temperature: -19~50 ℃
Corrosion Allowance: 1mm
Diameter: 2700 mm
Thickness of Shell: 14 mm
Thickness of Head: 16 mm
Joints efficiency: 0.95
Radiographs: 100%
Manhole: 1
Flanging: # ASA 300
Heat Treatment: 620℃ annealing
Hydraulic Test Pressure: 22.2 Bar
Design Standard: ASME, GB150 Pressure Vessel
Safety Accessories:
Safety Valve: A42F-25-80, DN80
Pressure Gauge: M20×1.5, 0~4MPA
Level Meter: ball float
Cut-off Valve: DN50, DN25, DN80, DN100
Thermometer: M33×2,-40℃~60℃
Painting System:
Sand blasting according to SIS 05 5900 in SA 2.5 degree
Two layer shop primer anti-corrossion.
Two layer epoxy primer.
One layer final acrylic paint.
Technical Specification:
We use various international design codes for designing of storage tanks which are horizontal cylindrical vessels as follows:
ASME Sec. VIII Div.1, ASME Sec. VIII Div.2 ,BS 5500 codes,CODAP 2000
PD 5500: Specification for unfired Fusion welded pressure vessels
Material of construction: SA 537 CL 1, SA 516 GR 70, BS 1501-1 225 490 A, EN 10028-3 P355NL2 AND OTHERS
Placement Restrictions:
The minimum distance from a building is 10 feet.
The minimum distance from a source of ignition is 10 feet.
The minimum distance from a property line is also 10 feet.
Pictures of 60m3 Propane Storage Tanks

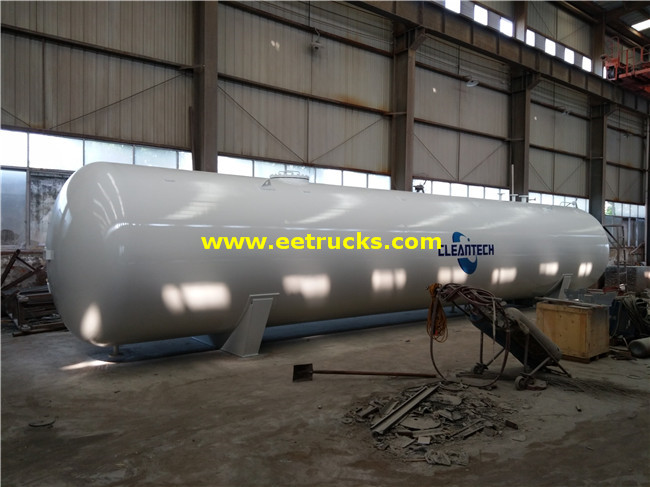

32T 60m3 Propane Storage Tanks

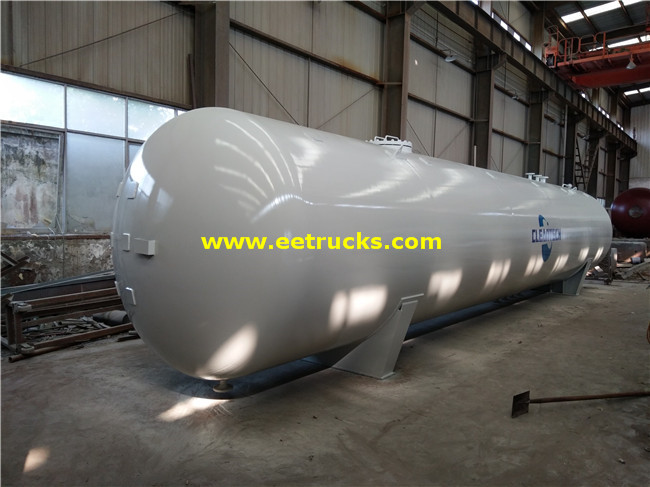

60m3 Propane Storage Tanks

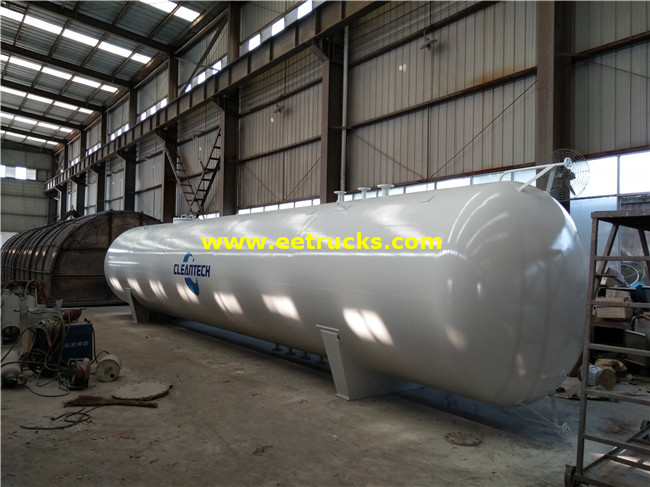

60000L Propane Storage Tanks

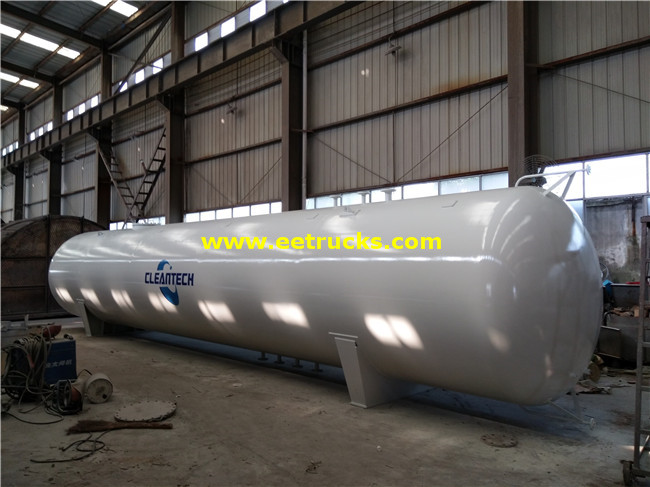

Horizontal 32T 60m3 Propane Storage Tanks

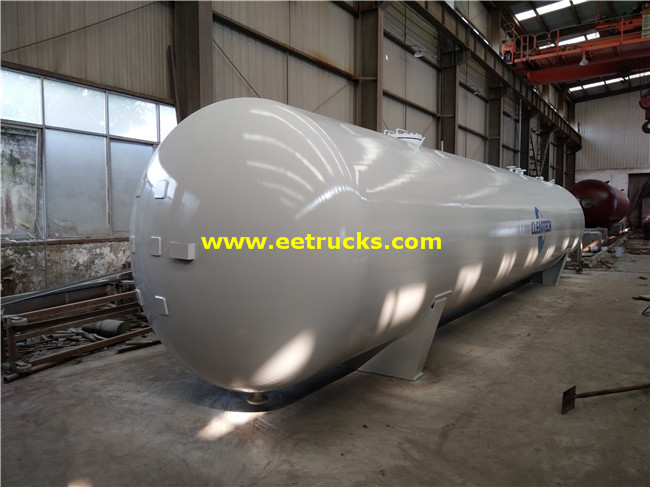

Horizontal 60m3 Propane Storage Tanks

Safety Notice:
1. Position the tank 10 metres from a building, drain, property boundary or a fixed source of ignition.
2. Keep the area around the tank free of combustible materials, e.g. rubbish, wood, etc.
3. The tank area must be large enough according the total volume of all tanks.

Related Products:
There are kinds of production lines and technical staff in our company,we can also manufacture the following products:
1. LED Advertising Trucks
2. Fire Fighting Truck
3. Bulk Cement Trucks
4. Oil Tank Truck

28 CBM Hydrochloric Acid Transport Trailers

Dongfeng LPG Tank Trucks

Company Information:
We Xiagong Chusheng Special Purpose Vehicle Co.Ltd. is the leader vehicle manufacturer and exporter in China, CSC TRUCK can research and develop independently. We specializes in manufacturing pressure vessels, LPG Storage Tanks, LPG Tank Trucks, heavy duty trucks, dump trucks, tractors and cement mixers,fuel tanker truck, trailers & Special Vehicles.
Production Field:

LPG Storage Tanks

Frequently Asked Question
1.Could your company modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of pressure vessels such as LPG Storage Tanks, LPG Tank Trucks, LPG Skid Mounted Station. We can provide the product that meet with your personalized demand.
2. Could your company totally customize products for me?
We can provide the customized-designing product meeting with your demand.
3. Could u provide certification that we need?
We can provide various certifications associate with trailer and truck. Such as DOT, ADR, SASO and so on.
4. How about the after-sale service?
Our technical staff can provide you the technical support to guide you how to use the product, and we take full responsibility during the design life of every product.

Looking for ideal 60m3 Propane Storage Tanks Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the 32T 60m3 Propane Storage Tanks are quality guaranteed. We are China Origin Factory of Horizontal 60m3 Propane Storage Tanks. If you have any question, please feel free to contact us.
