40 feet 52m3 LPG Tank Containers

$22200

1-0
Bag/Bags
$28500

≥1
Bag/Bags

Payment Type:

L/C,T/T,D/P,Paypal,Money Gram,Western Union

Incoterm:

FOB,CFR,CIF,EXW,FCA,CPT,CIP

Min. Order:

1 Bag/Bags

Transportation:

Ocean,Land

Port:

Shanghai Port,Shenzhen Port,Tianjin Port

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: 52m3

Brand: CSC

Type: Tank Container

Certification: ISO9001

Volume: 12.01M * 2.33M * 2.15M

Material: Steel Structure

Length: 40'

Gross Weight: 22T

Experice: 10 Years

Producing Period: >20 Days

Frame Size: >20ft

Life Span: 25 Years

Color: Customized

Supply Ability & Additional Information

Packaging: No

Productivity: 600 unit/year

Transportation: Ocean,Land

Place of Origin: Suizhou

Supply Ability: 50 unit/month

Certificate: ISO9001

Port: Shanghai Port,Shenzhen Port,Tianjin Port

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union

Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP

Packaging & Delivery

Selling Units:: Bag/Bags

Package Type:: No

Hubei Chusheng Vehicle Co.,LTD is a global suppliers of ISO tank containers for food, powders, chemicals and gases. We design and offer LPG Tank Containers for propane and butane gas transportation and storage. The units are built in conformity with a range of approvals as required like ASME U Stamp and EN12079 specifications.
Features
Improved safety
Preservation of the environment
Portability
Cost effectiveness
A multi-modal transport system: road / rail / sea / river
Global acceptater
LPG Tank Container specifications
container type: 1AA
Guide of tank cabinet: T50
Tare mass: 12670 kg
Maximum allowable load: 21630 kg
Max. tatal mass : 34300 kg
Allowable stacking load: 192000 kg
External dimension: 12192x2438x2591
Design service life: 10 years
Design codes and regulations: IMDG, ISO, ASME-VIII, ADR/RID, CSC, TC, TIR, UIC, US/UK DOT & GB150
Approval: LR, GL, BV, ASME, CCS
Tank parameter:
Medium: LPG
Media characteristics: Inflammable and explosive
Design temperature: 55℃
Working temperature: -40~55℃
Design Pressure: 1.8 MPa
Maximum allowable working pressure: 1.8 MPa
Corrosion allowance: 1 mm
Material of shell: 16MnDR (normalizing)
Material of head: 16MnDR (normalizing)
Welding joint coefficient: 1
Volume: 51,500 litres
Density: 420kg/m3
Pressure of hydrostatic test: 2.34 MPa
Pressure of airtightness test: 1.8 MPa
Dimension mm LxWxH: 12192x2438x2591
Diameter mm: 2418
Thickness of shell mm: 14
Thickness of head mm: 16
Paint: Primer Intermediate Paint Finish Coat
Safety valve
Type: A421F-25-16
Nominal pressure:2.5 MPa
Set pressure: 1.89 MPa
Level meter
Type: UQZ-25P
Form: rotating magnetic floating ball level meter
Nominal pressure:2.5 MPa
Measuring range: 50~2390 mm
Emergency shut-off equipment
Gas line: QGQ51F-25P-2, DN25
Liquid line: QGQ51F-25P-1, DN50
Pressure gauge: YN-100ZQ
Thermometer: WSS-40

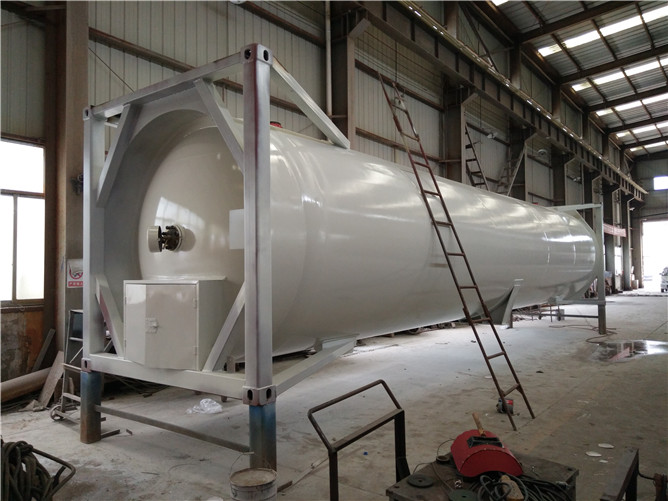

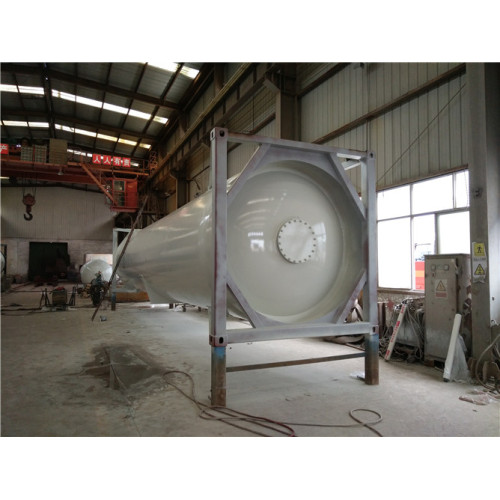

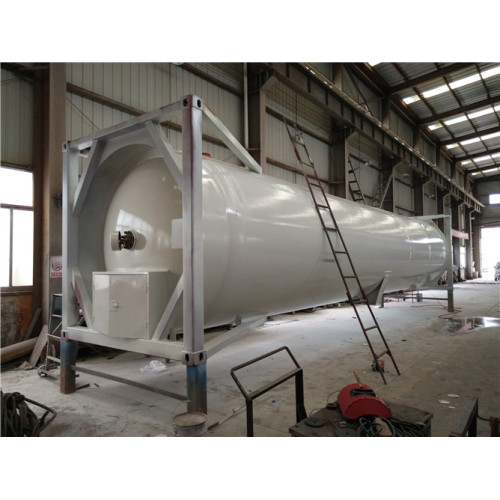

Pictures

40 feet 52m3 LPG Tank Containers

LPG Tank Container

40 feet LPG Tank Containers

40 feet LPG Tank Container

52m3 LPG Tank Containers

LPG Tank Container

Advantages
1. The ready use of conventional container handling equipment already in place for safe and reliable.
2. It can also server as vessel in the situation of Production or using.
3. It can save packing costs in barreled products.
4. Faster transfer at ports and terminals
5. Convenient storage option at destination
Related Products:
There are kinds of production lines and technical staff in our company, we can also manufacture the following products:
LPG Bullet Tanks\Domestic LPG Storage Tanks
Anhydrous Ammonia Bullet Tanks\ Liquid Ammonia Storage Tanks
LPG Tank Trucks\Propane Delivery Trucks
LPG Transport Trailers \LPG Gas Tanker Trailers
Hydrochloric Acid Tank Trailers\Sulfuric Acid Tanker Trailers
Sewage Suction Trucks\Septic Vacuum Trucks

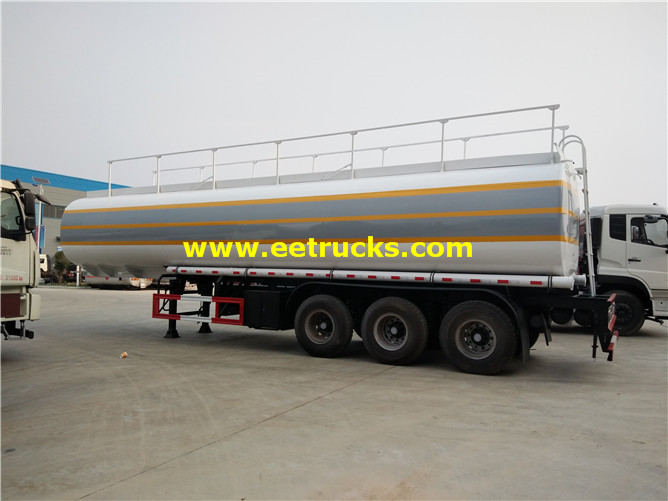

3 Axles Oil Tanker Trailers

FAQ
1. What tank containers can you offer?
We are ISO 9001 company certified by to international standards such as ASME, AD MERKBALTTER, PD 5500, CODAP 2000 and others. Many containers such as LPG Tank Container, Cement Tank Container , storage tank container, fuel tank container, gas tank container, IMO tank container etc. can be offered
2. What's the payment method?
TT 30% as Deposit, Balance Before shipment by TT or L/C at sight
3. How about the after-sale service?
Our technical staff can provide you the technical support to guide you how to use the product, and we take full responsibility during the design life of every product.
