60000 Litres Domestic Propane Steel Gas Tanks

Share to:
    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Incoterm: FOB,CFR,CIF,FCA,CPT,CIP
    Min. Order: 1 Bag/Bags
    Delivery Time: 30 Days

Basic Info

Model No.: 60000 Litres

Diameter: 2700mm

Design Pressure: 17.7 Bar

Design Temperature: -20~50℃

Corrosion Allowance: 1 Mm

Curb Weight: 12,750 Kg

Filling Mass: 23,940 Kg

Filling Medium: LPG

Additional Info

Packaging: no

Productivity: 50 sets per month

Brand: Xagong Chusheng

Transportation: Ocean,Land

Place of Origin: Suizhou,Hubei ,China

Supply Ability: 600 sets per year

Certificate: ISO9001,ISO14001,ASME,GB

Product Description

We offer a wide range of Propane Steel Gas Tanks to suit customer's requirements, All tanks are designed and manufactured according to pressure vessels rules, High level welding quality, Strict test procedure and Beautiful painting keep our Propane Steel Gas Tanks on the top in the industry.
Main Features
Conform to the latest design code of ASME, GB150 etc.
large selection about the volume
Advanced welding quality and high manufacturing process
Necessary equipments like Lpg Pump, valves, Lpg Compressor etc. are available
Technical Specification
Design Pressure: 17.7 Bar
Design Temperature: -20 Deg C to +50 Deg C
Corrosion Allowance: 1 mm
Material: Q345R, Q370R, SA516 Gr.70 etc.

Parameter Data
Filling Medium: LPG(Propane)
Medium characteristic: flammable and combustible
Volume: 15,000 Gallon
Media Density: 540 kg/m3
Design Pressure: 17.7 Bar
Working Pressure: 16.1 Bar
Designing Temperature: -19~50 ℃
Corrosion Allowance: 1mm
Diameter: 2700 mm
Thickness of Shell: 14 mm
Thickness of Head: 16 mm
Joints efficiency: 0.95
Filling mass: 25,650 kg
Curb weight: 10,640 kg
Radiographs: 100% RT, UT, MT
Manhole: 1, DN450
Flanging: # ASA 300
Heat Treatment: 620℃ annealing
Hydraulic Test Pressure: 22.2 Bar
Designed service life: 20 years
Safety Accessories:
Safety Valve: A42F-25-100, DN100
Pressure Gauge: M20×1.5, 0~4MPA
Level Meter: ball float
Cut-off Valve: DN50, DN80, DN100
Thermometer: M33×2,-40℃~60℃
Compact and efficient solutions
Can be installed, removed and relocated quickly
Increase capacity using the same footprint
Require no permanent changes to the installation site
Pictures of Propane Steel Gas Tanks

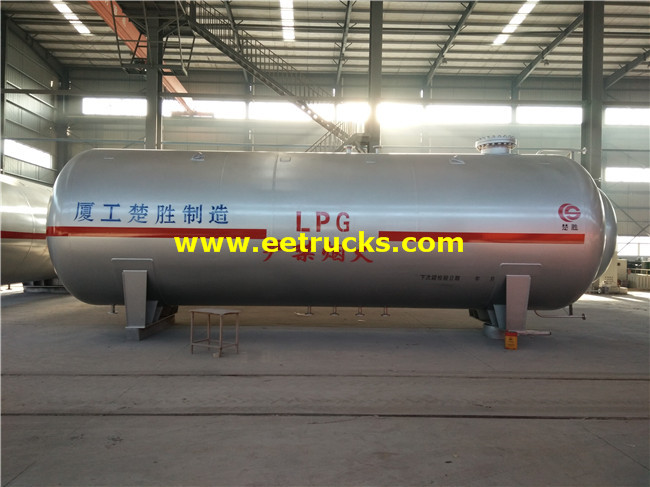

60000 Litres Domestic Propane Steel Gas Tanks

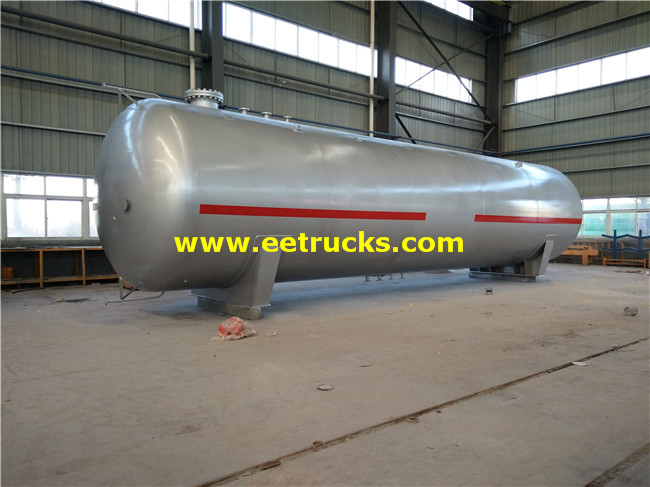

60000 Litres Propane Steel Gas Tanks

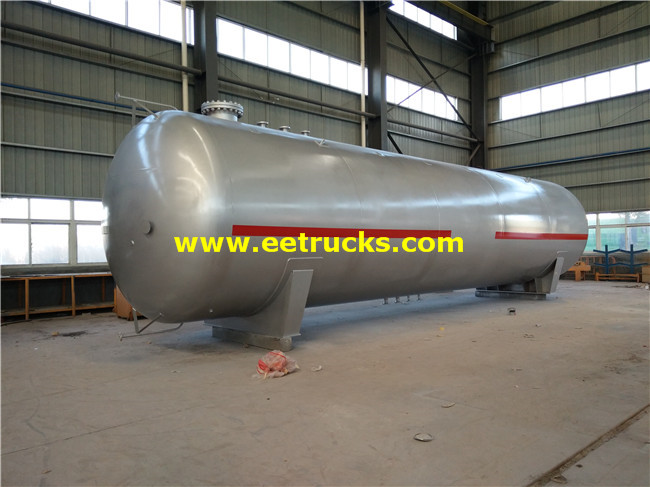

Domestic Propane Steel Gas Tanks

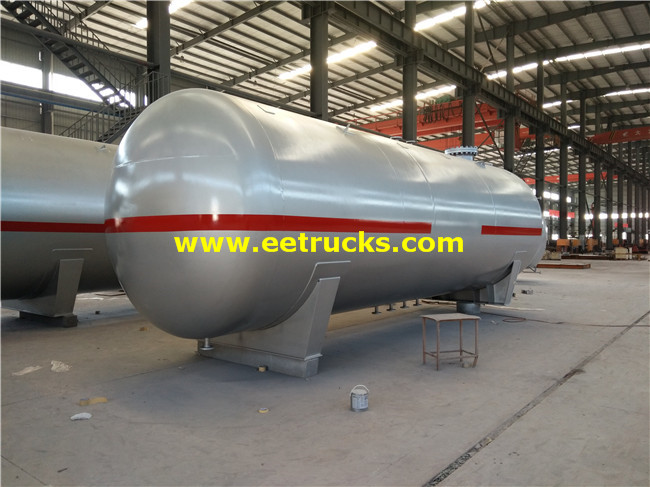

Propane Steel Gas Tanks

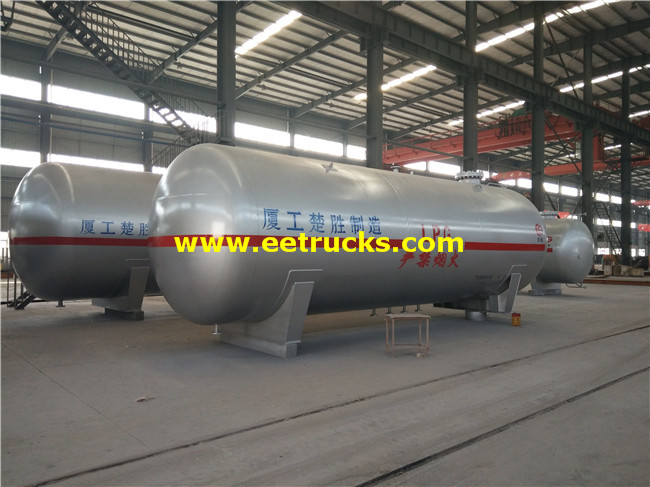

Propane Steel Gas Tank

Safety Notice:
1. Position the tank 10 metres from a building, drain, property boundary or a fixed source of ignition.
2. Keep the area around the tank free of combustible materials, e.g. rubbish, wood, etc.

Related Products:
There are kinds of production lines and technical staff in our company,we can also manufacture the following products:
1. LPG Tank Trailers
2. LPG Skid Mounted Station
LPG Tanker Trucks

3 axle Propane Trailer Tankers

Company Information:
We Xiagong Chusheng Special Purpose Vehicle Co.Ltd. is the leader vehicle manufacturer and exporter in China, CSC TRUCK can research and develop independently. We specializes in manufacturing pressure vessels, LPG Storage Tanks, LPG Tank Trucks, heavy duty trucks, dump trucks, tractors and cement mixers,fuel tanker truck, trailers & Special Vehicles.
Frequently Asked Question
1.Could your company modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of pressure vessels such as LPG Storage Tanks, Lpg Skid Mounted Station. We can provide the product that meet with your personalized demand.
2. Could your company totally customize products for me?
We can provide the customized-designing product meeting with your demand.
3. Could u provide certification that we need?
We can provide various certifications associate with trailer and truck. Such as DOT, ADR, SASO and so on.
4. How about the after-sale service?
Our technical staff can provide you the technical support to guide you how to use the product, and we take full responsibility during the design life of every product.

Looking for ideal Propane Steel Gas Tanks Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the 60000 Litres Propane Steel Gas Tanks are quality guaranteed. We are China Origin Factory of Domestic Propane Steel Gas Tanks. If you have any question, please feel free to contact us.
