5MT 10000L LPG Bulk Storage Vessels

Share to:
    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Incoterm: FOB,CFR,CIF,FCA,CPT,CIP
    Min. Order: 1 Bag/Bags
    Delivery Time: 30 Days

Basic Info

Model No.: 10000L

Diameter: 1600mm

Overall Dimensions: 5620×1620×2210

Design Pressure: 17.7 Bar

Design Temperature: -20~50℃

Loading Capacity: 3990 Kg

Additional Info

Packaging: no

Productivity: 50 sets per month

Brand: Xagong Chusheng

Transportation: Ocean,Land

Place of Origin: Suizhou,Hubei ,China

Supply Ability: 600 sets per year

Certificate: ISO9001,ISO14001,ASME,GB

Product Description

We offer LPG Bulk Storage Vessels, LPG Tank Trailers, LPG Skid Mounted Stations used for store, transport and dispense LPG Gas, All LPG Bulk Storage Vessels are fitted with necessary equipments like safety valve, level meter, thermometer etc. to keep the tank safe and easy to operate. With many years working experience and strict producing procedure, We have manufactured durable LPG Bulk Storage Vessels.
Features:
1. 2" bottom liquid
2. Lockable valve cover
3. Bottom pipe supports
4. Compact design
5. Easy to install
6. Side mounted easy fill and valves
Parameter Data
Filling Medium: LPG(Propane)
Volume: 10,000 litres
Media Density: 540 kg/m3
Design Pressure: 17.7 Bar
Working Pressure: 16.1 Bar
Designing Temperature: -19~50 ℃
Corrosion Allowance: 1mm
Diameter: 1600 mm
Thickness of Shell: 10 mm
Thickness of Head: 10 mm
Joints efficiency: 0.85
Radiographs: 100%
Manhole: 1
Flanging: # ASA 300
Heat Treatment: 620℃ annealing
Hydraulic Test Pressure: 22.2 Bar
Design Standard: ASME, GB150 Pressure Vessel
Safety Accessories: Safety Valve, Pressure Gauge, Level Meter, Cut-off Valve, Thermometer
Painting System:
Sand blasting according to SIS 05 5900 in SA 2.5 degree
Two layer shop primer anti-corrossion.
Two layer epoxy primer.
One layer final acrylic paint.
Technical Specification:
We use various international design codes for designing of storage tanks which are horizontal cylindrical vessels as follows:
ASME Sec. VIII Div.1, ASME Sec. VIII Div.2 ,BS 5500 codes,CODAP 2000
PD 5500: Specification for unfired Fusion welded pressure vessels
Material of construction: SA 537 CL 1, SA 516 GR 70, BS 1501-1 225 490 A, EN 10028-3 P355NL2 AND OTHERS
Placement Restrictions:
The minimum distance from a building is 10 feet.
The minimum distance from a source of ignition is 10 feet.
The minimum distance from a property line is also 10 feet.

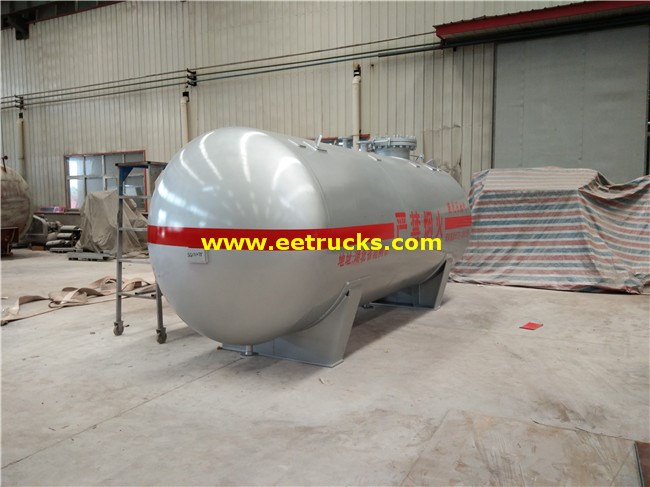

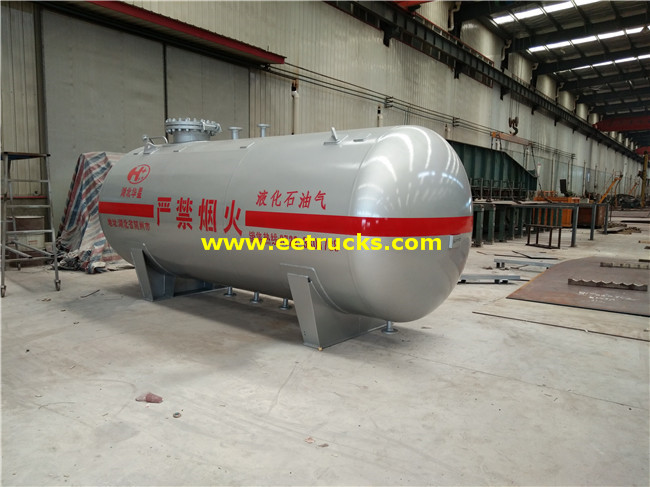

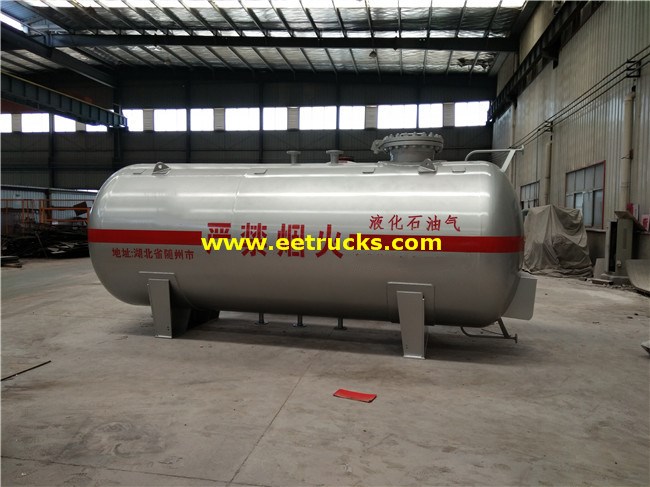

Pictures of LPG Bulk Storage Vessels

5MT 10000L LPG Bulk Storage Vessels

5MT LPG Bulk Storage Vessels

10 CBM LPG Bulk Storage Vessels

10000L LPG Bulk Storage Vessels

LPG Bulk Storage Vessels

Safety Notice:
1. Position the tank 10 metres from a building, drain, property boundary or a fixed source of ignition.
2. Keep the area around the tank free of combustible materials, e.g. rubbish, wood, etc.
3. The tank area must be large enough according the total volume of all tanks.

Related Products:
There are kinds of production lines and technical staff in our company,we can also manufacture the following products:
1. Dump Truck /Tipper Truck
2. Fire Fighting Truck
3. Truck with crane
4. Oil Tank Truck
5. Water truck/Water Tank Truck
6. Concrete Mixer TruckTri-axle 30T Bulk LPG Trailers

10 Wheel 5000L Truck Transit Mixers

Company Information:
We Xiagong Chusheng Special Purpose Vehicle Co.Ltd. is the leader vehicle manufacturer and exporter in China, CSC TRUCK can research and develop independently. We specializes in manufacturing pressure vessels, LPG Storage Tanks, LPG Tank Trucks, heavy duty trucks, dump trucks, tractors and cement mixers,fuel tanker truck, trailers & Special Vehicles.
Production Field:

LPG Storage Tanks

Frequently Asked Question
1.Could your company modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of pressure vessels such as LPG Storage Tanks, LPG Tank Trucks, LPG Skid Mounted Station. We can provide the product that meet with your personalized demand.
2. Could your company totally customize products for me?
We can provide the customized-designing product meeting with your demand.
3. Could u provide certification that we need?
We can provide various certifications associate with trailer and truck. Such as DOT, ADR, SASO and so on.
4. How about the after-sale service?
Our technical staff can provide you the technical support to guide you how to use the product, and we take full responsibility during the design life of every product.

Looking for ideal LPG Bulk Storage Vessels Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the 5MT LPG Bulk Storage Vessels are quality guaranteed. We are China Origin Factory of 10000L LPG Bulk Storage Vessels. If you have any question, please feel free to contact us.
